specification of VP-105

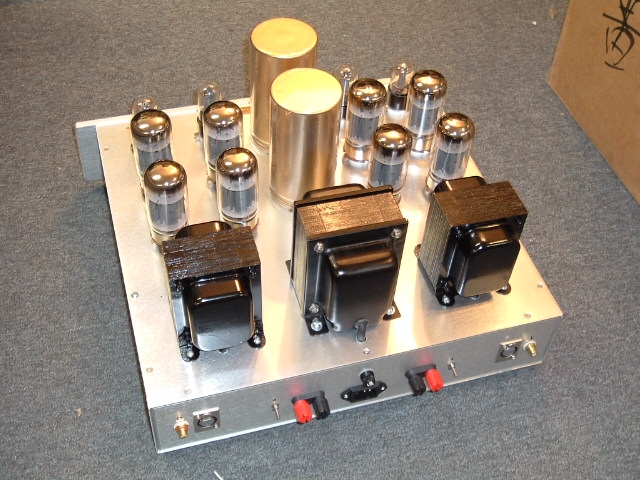

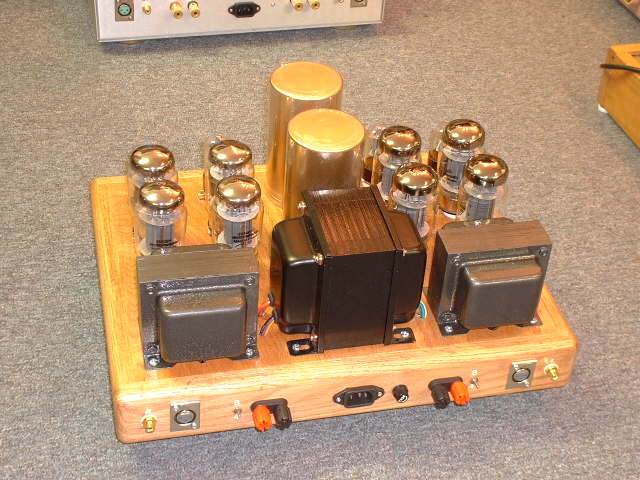

Model no: VP-105

100Wrms /channel all tube power amplifier

This is our high power output push-pull power amplifier that uses the most common 6550C tube as the output stage. Wide band high grade output transformers are used in order to achieve the best price-performance . Large filter capacitors in parallel with many smaller capacitors provide both good power supply response and stability in the sound quality . This amplifier can give very good control to any type of speakers. It offers an extremely transparent and liquid sound stage due to it’s no negative feedback design. A self-biasing circuit allows the best sound quality with easy tube replacement. There is not a single transistor in this state-of-the-art power amp, so the openness, richness and clarity is unsurpassed. Very minute details are rendered from your speaker effortlessly. You can just sit back and enjoy the music! A rendition so lifelike that you will forget you are listening to a stereo system. With this power amplifier, your speaker will disappear into thin air sonically, and a wonderfully rich soundstage will emanate effortlessly before you.

Specifications

No. of inputs	1 set of RCA inputs
No. of outputs	1set of speaker outputs (4/8 ohm selectable)
Freq response	5Hz - 80Khz (-3db)
S/N	better than 95 db
Power output	100Wrms class AB (optional: 50Wrms pure class A)
Phase	non-inverted (optional: inverted )
manufacturing	hand-wired point to point
Tubes used	2 x 6SL7 + 2 x 6SN7 + 8 x 6550c

option: 5U4G tube rectifier stage add C$250

option: XLR balanced input stage with dual gain control add C$300

1 year parts and labor warranty, tubes 90 days under normal operation conditions

standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, solid-oak )
