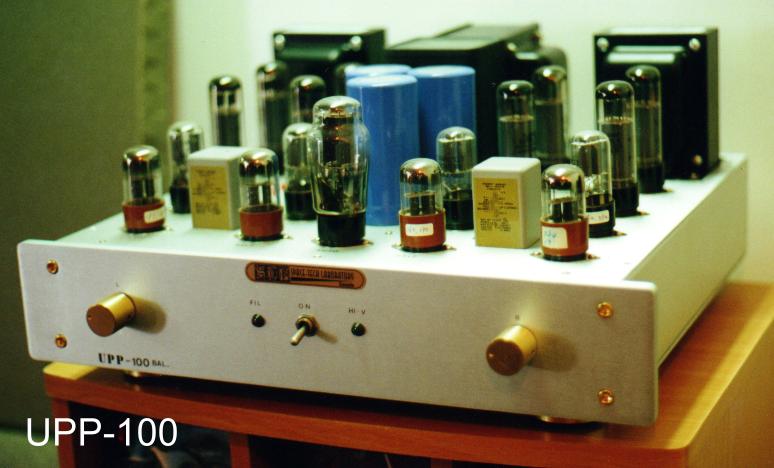

specification of UPP-100

Model no: UPP-100-bal

100W x 2 class AB Universal push-pull power amplifier

This power amplifier is built with a special variable bias circuit which can drive 10 different types of output power tubes. With that degree of flexiblilty, the user can easily use the different characteristics of output tubes to match the whole system. An ultra-heavy power supply section gives you both good dynamics, and a sweet easy sound quality. This is a state-of-the-art power amplifier which you’ll find hard to resist. This amplifier is equipped with a true balanced input stage which can let you fully explore this type of architecture’s advantages. Also the inter-stage transformer enhances the sound stage and musical feeling of the recording.

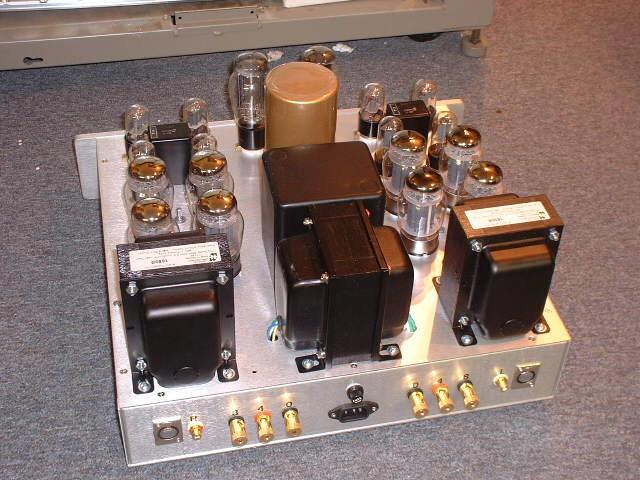

The lower 2 set of photos shows a special version with a dual tube rectifier.

Specifications

No. of inputs	1 set of RCA inputs, 1 set of balanced inputs
No. of outputs	1 set of speaker outputs (4 ohm + 8 ohm )
Freq response	5Hz - 80Khz (-3db)
S/N	> 100 db
Gain	x20 - x 30 depend on tubes (no negative feedback)
Phase	non-inverted
manufacturing	hand-wired point to point
Tubes used	4x6SL7+4x6SN7+8xpower tubes+5U4G rectifier
Output power /ch	100Wrms in ultra-linear drive mode using EL34

1 year parts and labor warranty, tubes 90 days under normal operation conditions

standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
