Model no: SE-ECL86

4Wrms x 2  single-ended power amplifier

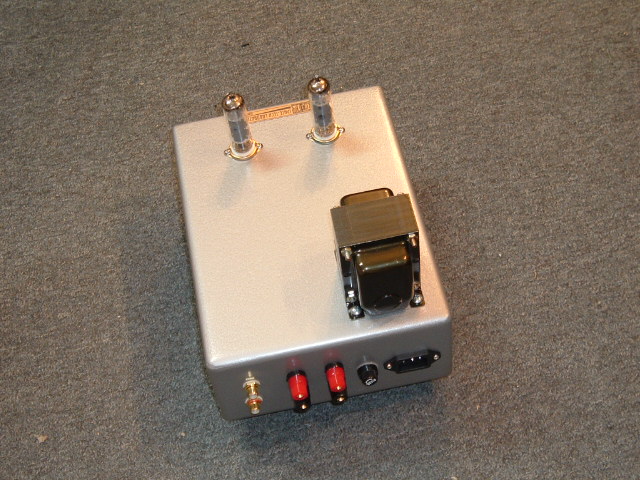

This is our single-ended power amplifier using the ECL86 small power tube as the output section. Power supply use both choke and high grade capacitors as filtering . This amplifier can drive speakers with an efficiency above 88db/W, or it can be used as the second amp to drive the tweeter section of a bi-wireable speaker system.

For this low price you can hardly find anything in the market which sounds better than this amplifier.

This amplifier also equipped a switchable "HPF" high pass filter crossover network, when set to HPF position, any freq below 500Hz will be cut off in -6db/oct slope, which can greatly enhance the maximum undistorted output loudness when use in a bi-wireable speaker system. With this switch, the max. loudness level can be the same as a 50Wrms power amplifier.


Specifications
No. of inputs 1 set of RCA inputs
No. of outputs 1 set of speaker outputs ( 4-16 ohm)
Freq response 10Hz - 30Khz (-3db)
S/N > 80 db
Phase non-inverted
manufacturing hand-wired point to point
Tubes used 2 x ECL86 (or 6GW8)
Output power /ch 4Wrms pure class A, single-ended

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
