specification of SE-845

Model no: SE-845

25W x 2 single-ended power amplifier

This is one of our state-of-the-art single-ended power amplifiers, using the most common 845 high power tube as the output section. A high grade single-ended output transformer is used to ensure the highest sonic quality. This amplifier can drive almost any type of speaker.

The 845 tube has a very solid sounding, high definition, transparent characteristic which makes it very suitable for classical, vocal, pop, and jazz reproduction.

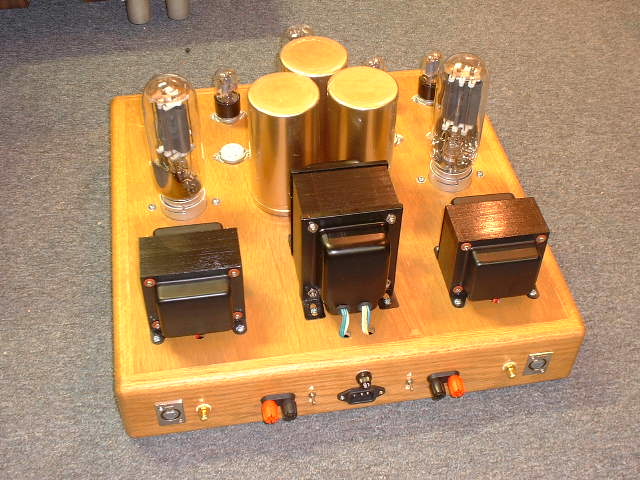

The upper two units show a balanced input version with a tube rectifier.

The lower unit shows the balanced input version with a choke.

Specifications

No. of inputs	1 set of RCA inputs
No. of outputs	1 set of speaker output ( 4/8-16 ohm switchable)
Freq response	10Hz - 50Khz (-3db)
S/N	> 85 db

Phase	non-inverted
manufacturing	hand-wired point to point
Tubes used	2 x 6SL7 + 2 x 6SN7 + 2 x 845
Output power /ch	25Wrms pure class A, single-ended

option: 5U4G tube rectifier or choke add C$250

option: XLR balanced input stage add C$ 300

1 year parts and labor warranty, tubes 90 days under normal operation conditions

standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
