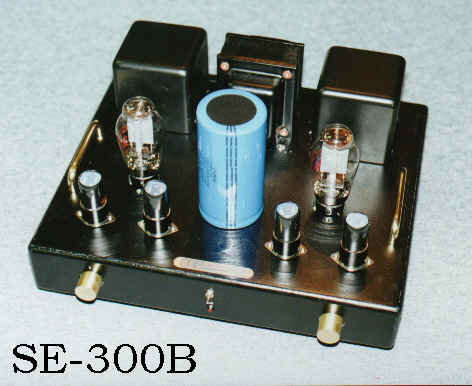

Model no: SE-300B
8W x 2 single-ended power amplifier

This is one of our state-of-the-art single-ended power amplifiers, using the most common 300B medium power tube as the output section. A high grade single-ended output transformer is used to ensure the highest sonic quality. This amplifier can drive speakers with efficiency above 85db/W, or it can used as the second amp to drive the tweeter section of a bi-wired speaker system.

The 300B has a very sweet and transparent characteristic which makes it very suitable for classical music, vocal, and jazz reproduction.

Specifications
No. of inputs 1 set of RCA inputs
No. of outputs 1 set of speaker outputs ( 8 ohm)
Freq response 10Hz - 50Khz (-3db)
S/N > 80 db
Gain depending on tubes
Phase non-inverted
manufacturing hand-wired point to point
Tubes used 2 x 6SL7 + 2 x 300B
Output power /ch 8Wrms pure class A, single-ended

option: 5U4G tube rectifier add C$250
1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis :  Mirror steel, black piano , solid-oak )
