Model no:   QA-116-sp



QA-116.jpg    QA-116.jpg

STR-103 Super rectifier tube upgrade for 5U4G ( C$480 include 2 x 866A tubes)

With this super rectifier adaptor, you can use 300B, 2A3 , 45 , 50 , 80, 83 or 866A as rectifier tubes option



line stage pre-amplifier with balanced + RCA output

Using NOS MULLARD EL32 as the amplification, and 6G6G as the output driver makes this state-of-the-art pre-amplifier sublimely attractive. This is the No transformer version of QA-116 but still has the same legendary richness and finesse in the sound quality.

With this pre-amplifier,the background is so quiet that it makes you easily aware of microdetails like the background noise of the recording studio. The 6G6G output buffer section provides very exceptional driving capability to eliminate any absorption of information from the cable and power amp input. By changing the set of output drivers with tubes like EL34, 6L6G, 6Y6G...etc, you can then change the tonal quality and weight of the signal. This unit is handbuilt with a 5U4G tube rectifier and enhanced power supply which gives you the best price-performance in this type of pre-amplifier.

A stand-by switch is also featured in this model, which lets the unit stay turned-on all the time (24hrs/day) in stand-by mode. With just a switch back to normal mode when in operation, the warm-up time of the unit will be shortened from 15min to less than 1min.

A Diode-Enable switch for the rectifier section is also featured in this unit to have tighter bass control and punch when listening to music which requires faster dynamics and pace. This is a 3-way mode selection switch, you can select between tube rectifier only or tube + diode rectifier or diode rectifier only .

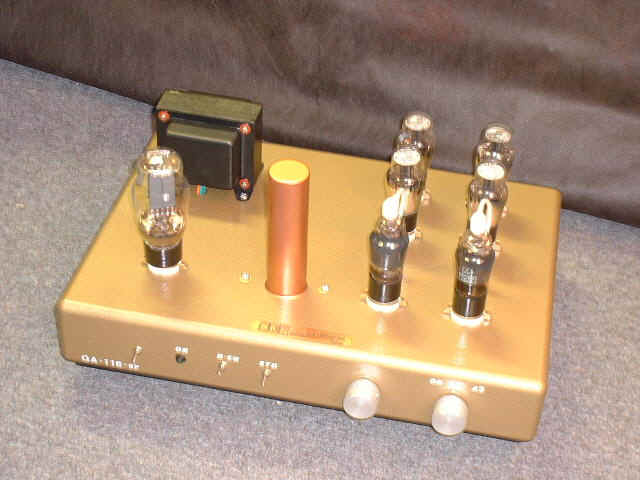

The photo shows a standard MDF chassis in a gold color.

Now available with a 5U4G super rectifier tube, this option can greatly enhance the dynamics, high and low frequency extension, and bass punch. A stand-by switch for pre-heating of the rectifier tubes ensures the dynamics, high and low frequency extension, and bass punch. A stand-by switch for pre-heating of the rectifier tubes ensures the dynamics, high and low frequency extension, and bass punch. A stand-by switch for pre-heating of the rectifier tubes ensures the

Specifications
No. of inputs 3 sets of  RCA inputs
No. of outputs 1 set of RCA + 1 set of XLR pre-amp outputs , 1 set of RCA record outputs
Freq response

2Hz - 100Khz (-3db)

S/N > 85 db
Gain x3-x6 depend on tubes
Phase

180 deg inverted

manufacturing hand-wired point to point
Tubes used 2 x Mullard EL32  (option: CV1052)

+ 4 x 6G6G(option: 6L6G/6Y6G/6K6G/6V6G/EL34/KT66/KT88/6550)

 + 5U4G (option: 274B/5R4/5V4/EZ32/5AR4)





(price for standard chassis, shipping not included)

1 year free parts and labor warranty under normal operation conditions
standard chassis : Gold/ Black/Metallic MDF , Aluminium chassis

(optional chassis : Mirror steel, black piano , solid-oak )
