Model no:   IA-102




IA-102.jpg IA-102A.jpg (61143 bytes)

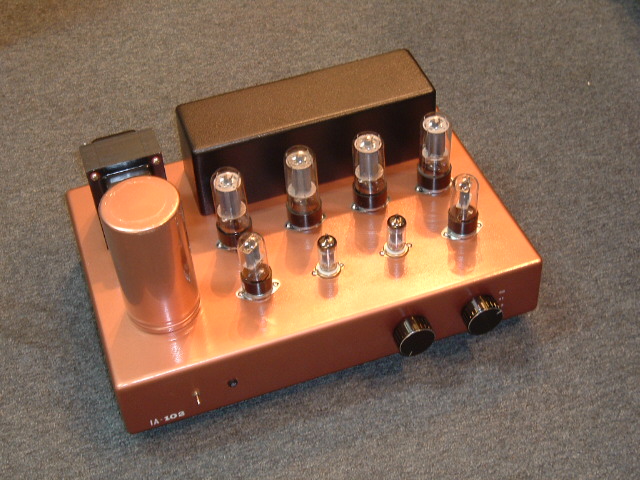

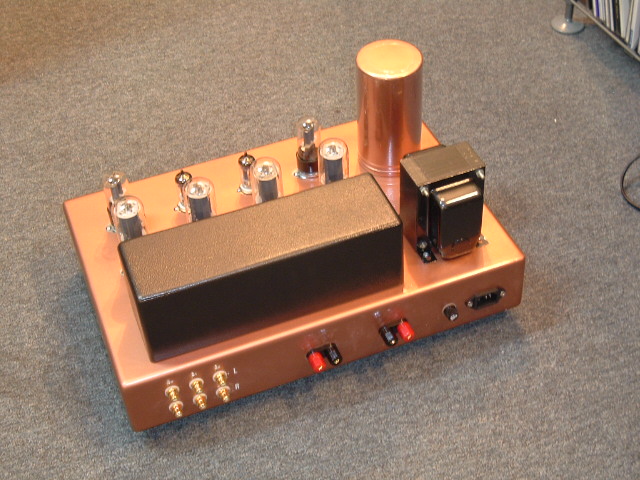

40W x 2 class AB push-pull all tube integrated amplifier

This integrated amp uses a superb sounding self-biasing power output circuit to drive a pair of high quality output transformers. This product has a very broad frequency bandwidth. Standard default tube use EL34, can directly replace with KT66 or 6L6G or 6550 .

Power tube power up by AC filament, signal tubes use DC filament to ensure most quiet background and best tonal quality. Almost any speaker with efficiency above 86db/W can be driven sublimely with this state-of-the art integrated amplifier.
Specifications
No. of inputs 3 sets of RCA inputs
No. of outputs 1 set of speaker outputs (4 ohm/8-16 ohm selectable ) + 1 set of record outputs
Freq response 10Hz - 50Khz (-3db)
S/N better than 90 db
Gain x50
Phase non-inverted
manufacturing hand-wired point to point
Tubes used 2 x 12AU7 + 2 x 6SN7 + 4X EL34 (KT66/6L6G)
Output power /ch 40Wrms in triode mode (option: 20Wrms pure class A)

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
