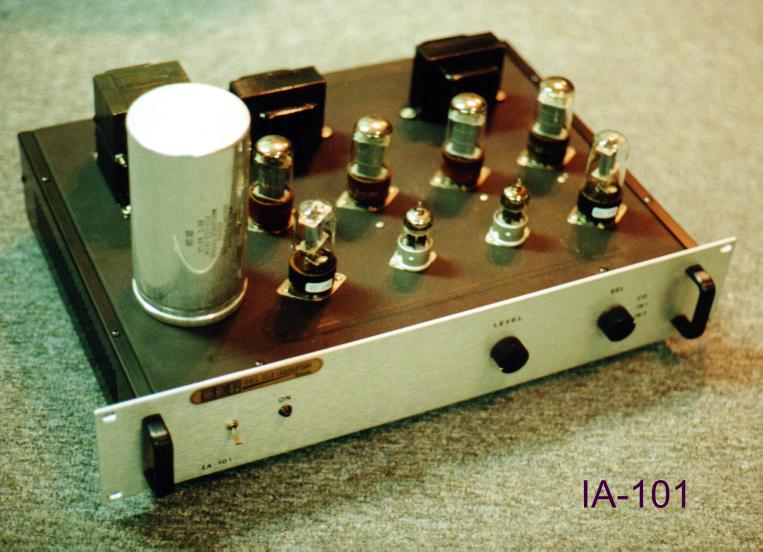

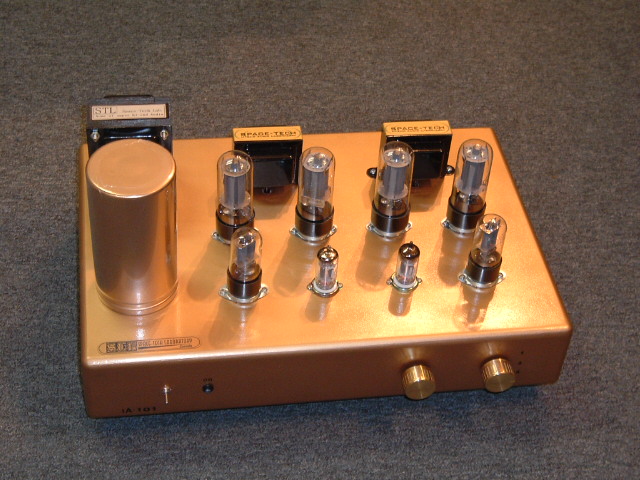

Model no: IA-101

25W x 2 class AB push-pull all tube integrated amplifier

This integrated amp uses a superb sounding self-biasing power output circuit to drive a pair of high quality output transformers. This product has a very broad frequency bandwidth.

Tube filaments are all driven with AC voltage in order to achieve the highest sonic quality. Almost any speaker with efficiency above 86db/W can be driven sublimely with this state-of-the art integrated amplifier.
Specifications
No. of inputs 3 sets of RCA inputs
No. of output 1 set of speaker outputs (4-16 ohm ) + 1 set of record outputs
Freq response 5Hz - 50Khz (-3db)
S/N better than 85 db
Gain x30
Phase non-inverted
manufacturing hand-wired point to point
Tubes used 2 x 12AX7 + 2 x 6SN7 + 4X 6L6GT (option: 6V6/KT66)
Output power /ch 25Wrms in triode mode

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
