Model no:   IA-001

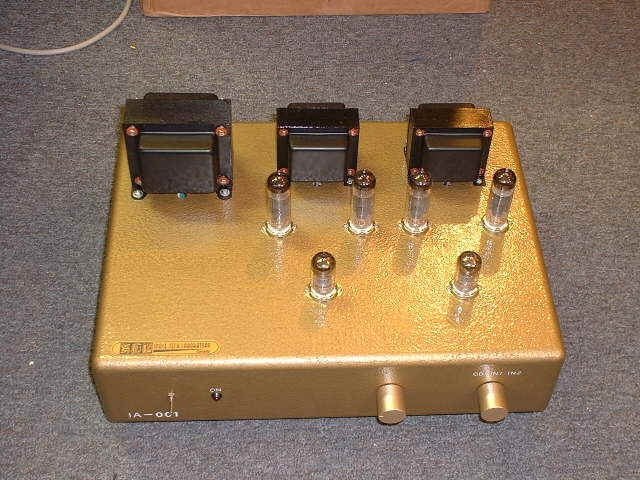

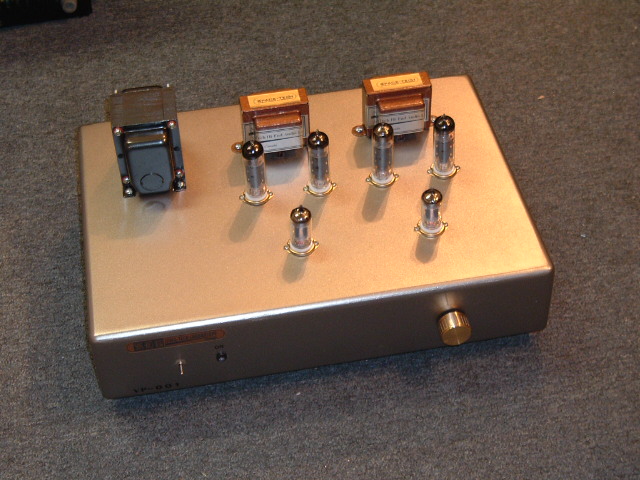

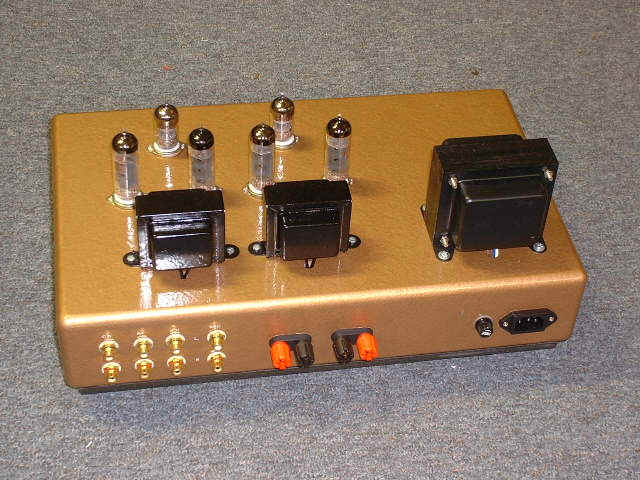

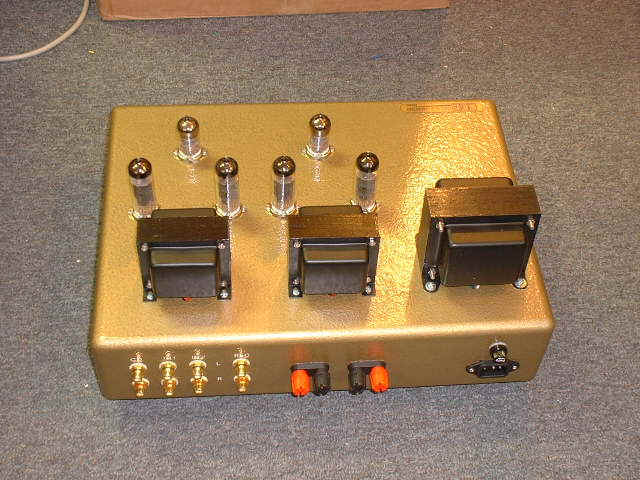

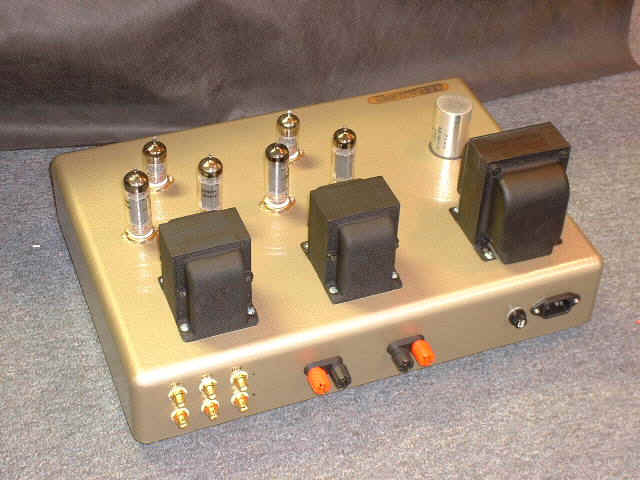

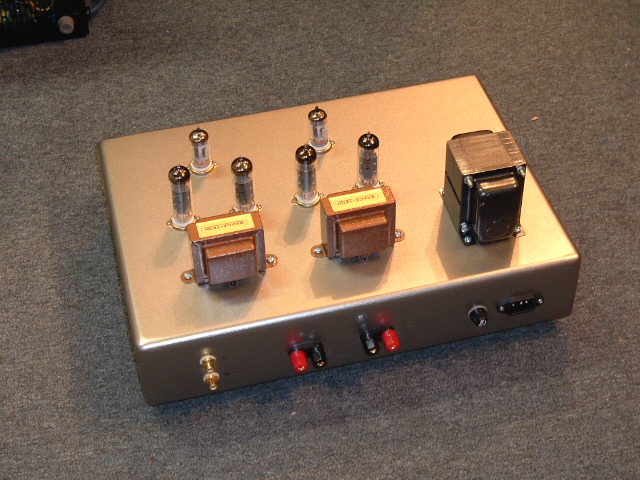

18W x 2 class AB push-pull all tube integrated amplifier

This integrated amp uses a superb sounding self-biased output circuit which drives a pair of high quality output transformers. The filament of all tubes are driven with AC voltage in order to achieve the highest sonic quality.

 Almost any type of speaker with an efficiency above 86db/W can be driven with reasonable dynamics and loudness level.

Specifications
No. of inputs 3 sets of RCA inputs
No. of outputs 1 set of speaker outputs (4 -16 ohm )
Freq response 5Hz - 50Khz (-3db)
S/N better than 85 db
Gain x30
Phase non-inverted
manufacturing hand-wire point to point
Tubes used 2 x 12AX7 + 4 x EL84 / 6BQ5 / SV83
Output power /ch 18Wrms in triode mode class AB

or 10Wrms pure class A

1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
